BOOMERANG

AUTOMATIC ROTATING ARM STRETCH WRAPPING MACHINES

The Boomerang is the stretch film wrapping arm designed by Noxon with the possibility of implementing several types of carriage.
The 210 carriage (electromagnetic), the 212 carriage (with 250% fixed ratio pre-stretch) and the 214 carriage (with 2 independent motors and variable pre-stretch), meet all pallet wrapping requirements. The 7″ touch screen control panel allows numerous programmes to be customised, adapting to any packaging requirement.

CARRIAGE 210
Carriage with electromagnetic brake, film tensioning adjustable from control panel.

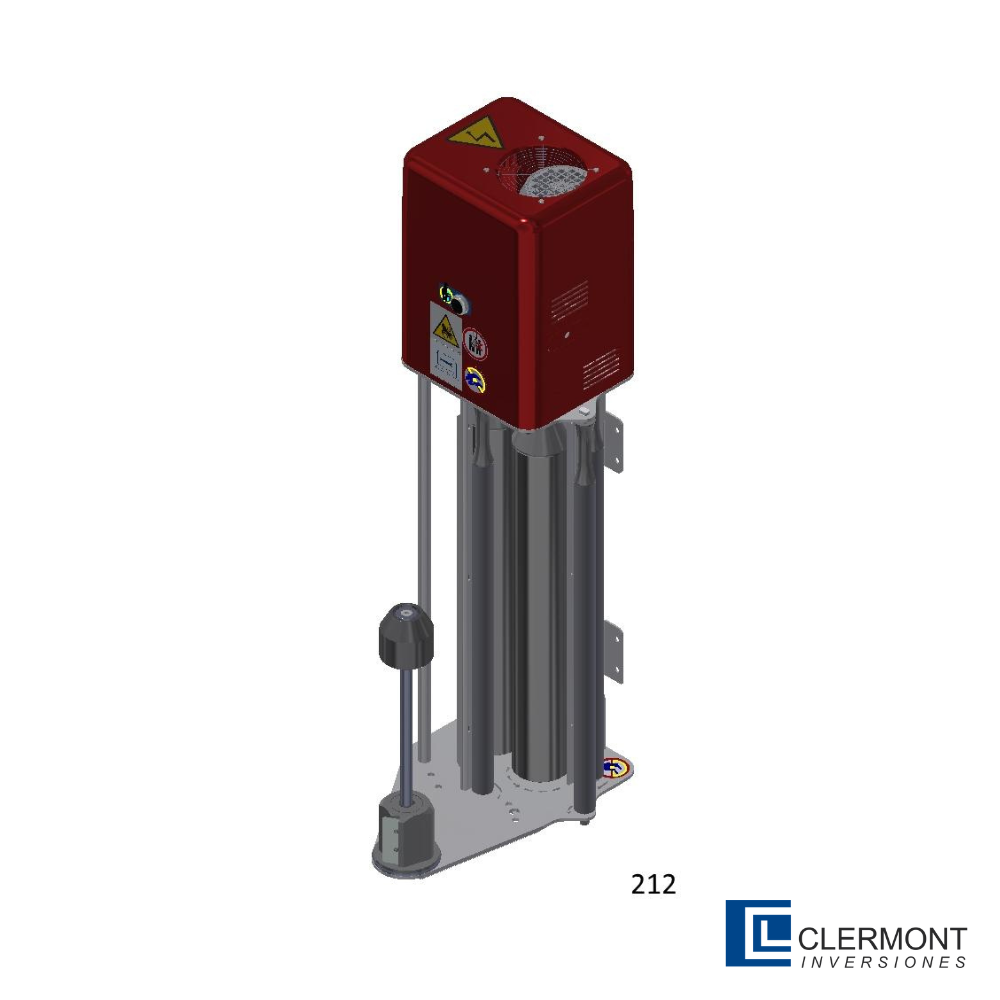

CARRIAGE 212
Carriage with fixed pre-stretch 250%, in option 150%, 200%, 300%. Film tensioning by load cell,
adjustable from control panel.

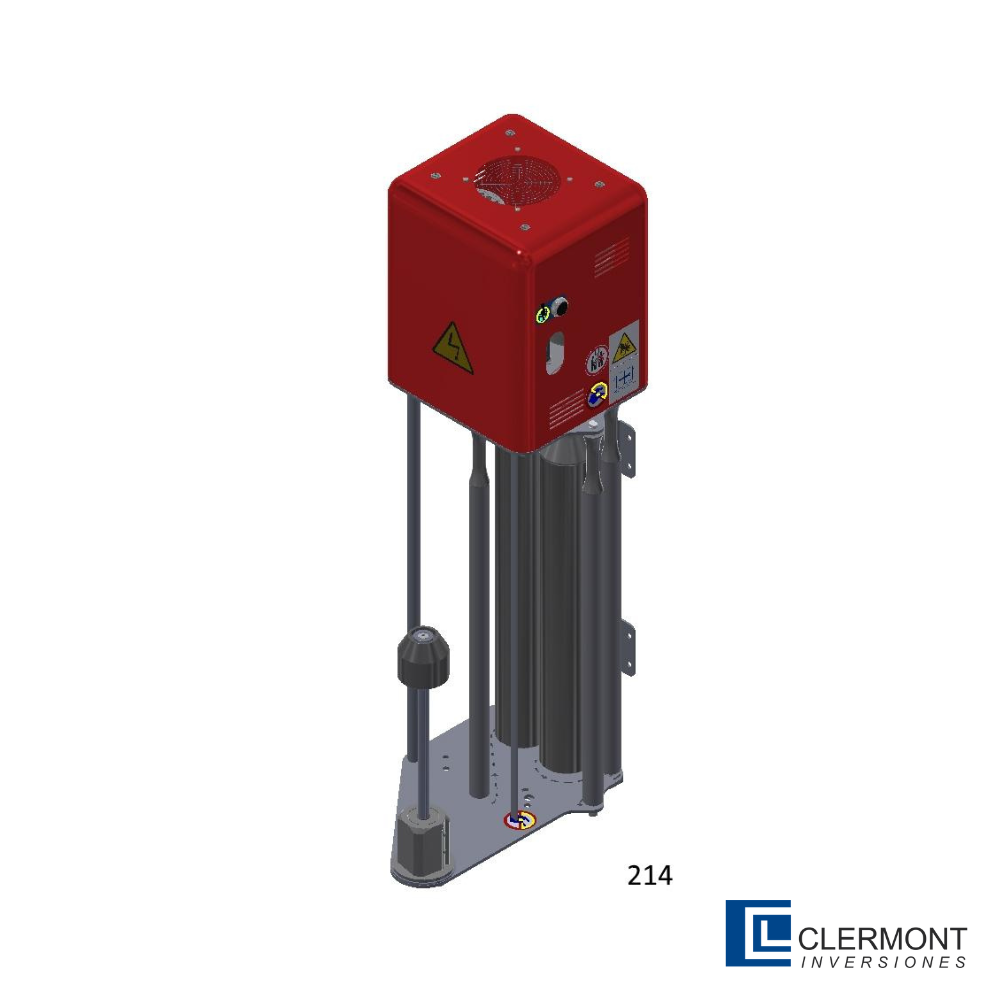

CARRIAGE 214
Carriage with 2 independent motor, variable film pre-stretch from 150% to 400%. Pre-stretch and film
tensioning adjustable from control panel.

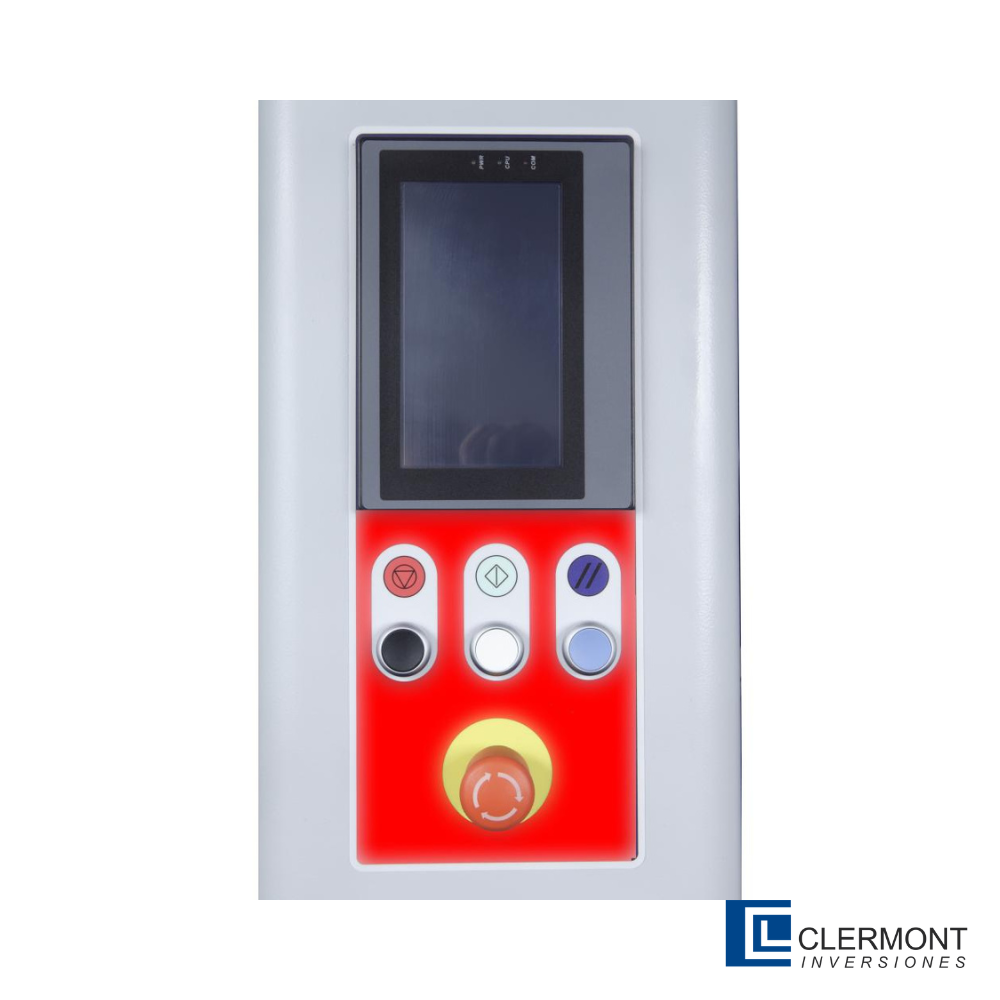

CONTROL PANEL
7» Touch screen control panel, with user friendly graphic’s icons.

PARAMETERS ADJUSTABLE FROM CONTROL PANEL
Pre-stretch (212-214)
Film tensioning (210-212-214)
Arm rotating speed
Top wraps/bottom wraps
Upward/downward speed carriage
Start from the ground
Photocell delay
Altimeter
Manual carriage up/downward
Manual pressure platen up/down
Cycle recording

CYCLES AND PROGRAMS CUSTOMIZABLE
Upward or downward or alternative cycle
Top sheet cycle
Pressure platen cycle
